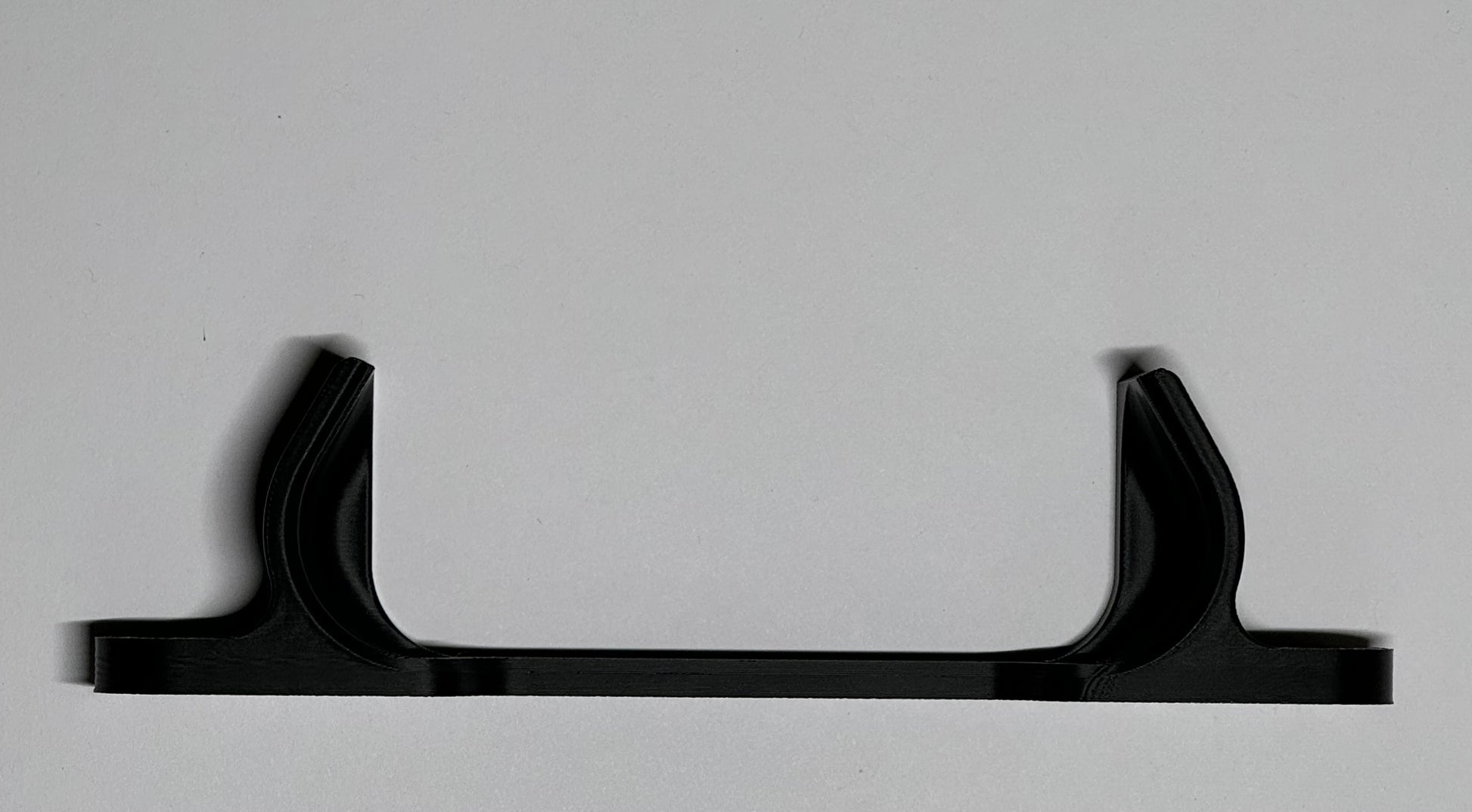

Spare Hub Bracket

Spare Hub Bracket

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
View full details

Kit Includes

1) Roam Marine Monitor Hub

The primary hub includes ambient temperature, humidity sensors along with sea state monitoring and a backup battery. All sensors connect to the bottom of the device and can be custom configured to meet your specific needs.

2) LTE-M Cellular Antenna

3) Secondary Battery or Pump Sensor x2

Wire these sensors into your second battery bank or bilge pumps for continual status. If you are connecting to your bilge pump we often recommend connecting to the manual bilge pump switch and the 6' wire is often more than enough. If you feel you will need more wire then order the 18' version for extended connection flexibility.

4) High Water Float Switch

Our high water float switch is custom built to provide a normally closed signal to our hub. Unlike many other float switch alarms this allows us to alarm if there is a problem with the wire to increase confidence in a high water event alarm. The float switch comes with a 15' wire.

5) Main Battery Supply Sensor

The main battery supply cable is 6' and is typically connected to your house batteries either at the battery or on a main bus bar in the electrical panel. The Roam Monitor both monitors battery voltage and uses this connection for it's primary power source.

6) GPS Antenna

Our GPS antenna comes with a 10' cable to allow for easy installation. The GPS antenna can be installed inside a fiberglass boat but should be kept away from metal and installed with the sticky side facing earth.

7) Mounting Brackets

Two mounting brackets and associated screws are included for quick mounting of the product.

Technical Specifications

Operating Input Voltage 5-32 VDC
Power Draw 0.3W (0.030A @ 12V)
Internal Battery Capacity 2600mAh
Battery Certification UN 38.3
Runtime on Internal Battery 48 hours with GPS Enabled
Up to 28 Days with GPS Disabled
Physical Dimensions 5.0 in x 3.8 in x 1.5 in
(127 mm x 97 mm x 38 mm)
Storage Temperature -40ºF to 160ºF
Operating Temperature -22ºF to 149ºF
Cellular LTE CAT M1 Bands: B2, B4, B5, B12, B13, B25, B26, B66
Local Wireless 2.4Ghz
GPS Positioning GNSS External Antenna
Certifications FCC Part 15B
PTCRB
Internal Sensors Temperature
Humidity
Accelerometer (Sea State)
Audible Alarm Piezo Internal to Hub
External Inputs Input 1: Main Supply and Voltage Sense
Input 2-4: Voltage/Pump/Float Switch
